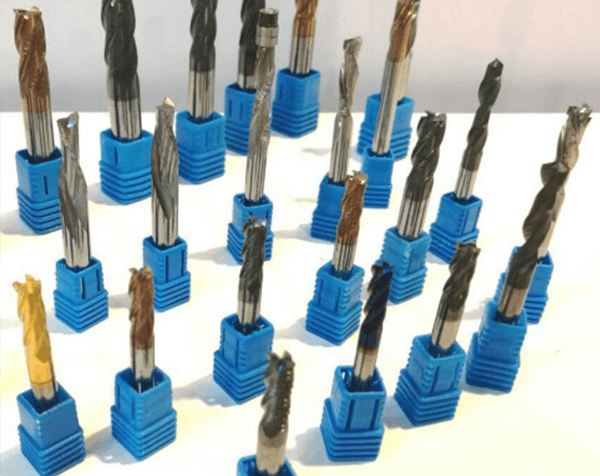

Solid Carbide End Mills
Rydmet produces a complete line, standard and specially deisgned, of carbide and solid carbide end mills manufactured from ultra and micro grain carbide blanks that with both maiximum Hardness and Thoughenss,which can gurantee the excellent tool perfornance and long tool life.
Our Carbide End mills are ground by imported high precision CNC Tool ginder that make our end mills pefect in tolernace, precision, gometry and concentricity,which helps the tool peformance and production efficiency.
Longer Tool life, Lower cost, Higher Efficiency are our permanent Aim toward the End mills and other Carbide or Tools.
Solid Carbide Endmills, Flat End, 2 flutes
| Specifications (mm) | |||
| Dc | Ds | Lc | L |
| Φ0.5 | 4 | 1 | 50 |
| Φ0.8 | 4 | 2 | 50 |
| Φ1 | 4 | 3 | 50 |
| Φ1.5 | 4 | 5 | 50 |
| Φ2 | 4 | 5 | 50 |
| Φ2.5 | 4 | 8 | 50 |
| Φ3 | 4 | 8 | 50 |
| Φ3.5 | 4 | 10 | 50 |
| Φ4 | 4 | 10 | 50 |
| Φ5 | 6 | 15 | 50 |
| Φ6 | 6 | 15 | 50 |
| Φ8 | 8 | 20 | 60 |
| Φ10 | 10 | 25 | 75 |
| Φ12 | 12 | 30 | 75 |
| Φ14 | 14 | 35 | 83 |
| Φ16 | 16 | 40 | 100 |
| Φ18 | 18 | 40 | 100 |
| Φ20 | 20 | 45 | 100 |
| Φ25 | 25 | 45 | 110 |
Solid Carbide Endmills, Flat End, 4 flutes
| Specifications (mm) | |||
| Dc | Ds | Lc | L |
| Φ1 | 4 | 3 | 50 |
| Φ1.5 | 4 | 5 | 50 |
| Φ2 | 4 | 5 | 50 |
| Φ2.5 | 4 | 8 | 50 |
| Φ3 | 4 | 8 | 50 |
| Φ3.5 | 4 | 10 | 50 |
| Φ4 | 4 | 10 | 50 |
| Φ5 | 6 | 15 | 50 |
| Φ6 | 6 | 15 | 50 |
| Φ8 | 8 | 20 | 60 |
| Φ10 | 10 | 25 | 75 |
| Φ12 | 12 | 30 | 75 |
| Φ14 | 14 | 35 | 83 |
| Φ16 | 16 | 40 | 100 |
| Φ18 | 18 | 40 | 100 |
| Φ20 | 20 | 45 | 100 |
| Φ25 | 25 | 45 | 110 |
Carbide Endmills, Flat End, 2 flutes, Extra Long
| Specifications (mm) | |||
| Dc | Ds | Lc | L |
| Φ4 | 4 | 25 | 75 |
| Φ6 | 6 | 30 | 100 |
| Φ8 | 8 | 40 | 100 |
| Φ10 | 10 | 40 | 100 |
| Φ12 | 12 | 50 | 100 |
| Φ16 | 16 | 70 | 150 |
| Φ20 | 20 | 70 | 150 |
Carbide Endmills, Flat End, 4 flutes, Extra Long
| Specifications (mm) | |||
| Dc | Ds | Lc | L |
| Φ4 | 4 | 25 | 75 |
| Φ6 | 6 | 30 | 100 |
| Φ8 | 8 | 40 | 100 |
| Φ10 | 10 | 40 | 100 |
| Φ12 | 12 | 50 | 100 |
| Φ16 | 16 | 70 | 150 |
| Φ20 | 20 | 70 | 150 |
Carbide Endmills, Ball Nose, 2 flutes
| Specifications (mm) | |||
| d | D | Lc | L |
| R0.5 | 4 | 2 | 50 |
| R0.75 | 4 | 3 | 50 |
| R1.0 | 4 | 4 | 50 |
| R1.5 | 4 | 6 | 50 |
| R2 | 4 | 8 | 50 |
| R2.5 | 6 | 10 | 50 |
| R3 | 6 | 12 | 50 |
| R4 | 8 | 16 | 60 |
| R5 | 10 | 20 | 75 |
| R6 | 12 | 24 | 75 |
| R8 | 16 | 32 | 100 |
| R10 | 20 | 45 | 100 |
| R12.5 | 25 | 45 | 110 |
Carbide Endmills, Ball Nose, 4 flutes
| Specifications (mm) | |||
| d | D | Lc | L |
| R0.5 | 4 | 2 | 50 |
| R0.75 | 4 | 3 | 50 |
| R1.0 | 4 | 4 | 50 |
| R1.25 | 4 | 4 | 50 |
| R1.5 | 4 | 6 | 50 |
| R2 | 4 | 8 | 50 |
| R2.5 | 6 | 10 | 50 |
| R3 | 6 | 12 | 50 |
| R4 | 8 | 16 | 60 |
| R5 | 10 | 20 | 75 |
| R6 | 12 | 24 | 75 |
| R8 | 16 | 32 | 100 |
| R10 | 20 | 45 | 100 |
| R12.5 | 25 | 45 | 110 |
Carbide Endmills, Ball Nose, 2 flutes,Extra Long
| Specifications (mm) | |||
| d | D | Lc | L |
| R3 | 6 | 25 | 100 |
| R4 | 8 | 25 | 100 |
| R5 | 10 | 25 | 100 |
| R6 | 12 | 45 | 100 |
| R8 | 16 | 45 | 150 |
| R10 | 20 | 45 | 150 |
Carbide Endmills, Ball Nose, 2 flutes,Extra Long
| Specifications (mm) | |||
| d | D | Lc | L |
| R2.5 | 6 | 20 | 80 |
| R3 | 6 | 25 | 100 |
| R4 | 8 | 25 | 100 |
| R5 | 10 | 25 | 100 |
| R6 | 12 | 45 | 100 |
| R8 | 16 | 45 | 150 |
| R10 | 20 | 45 | 150 |
